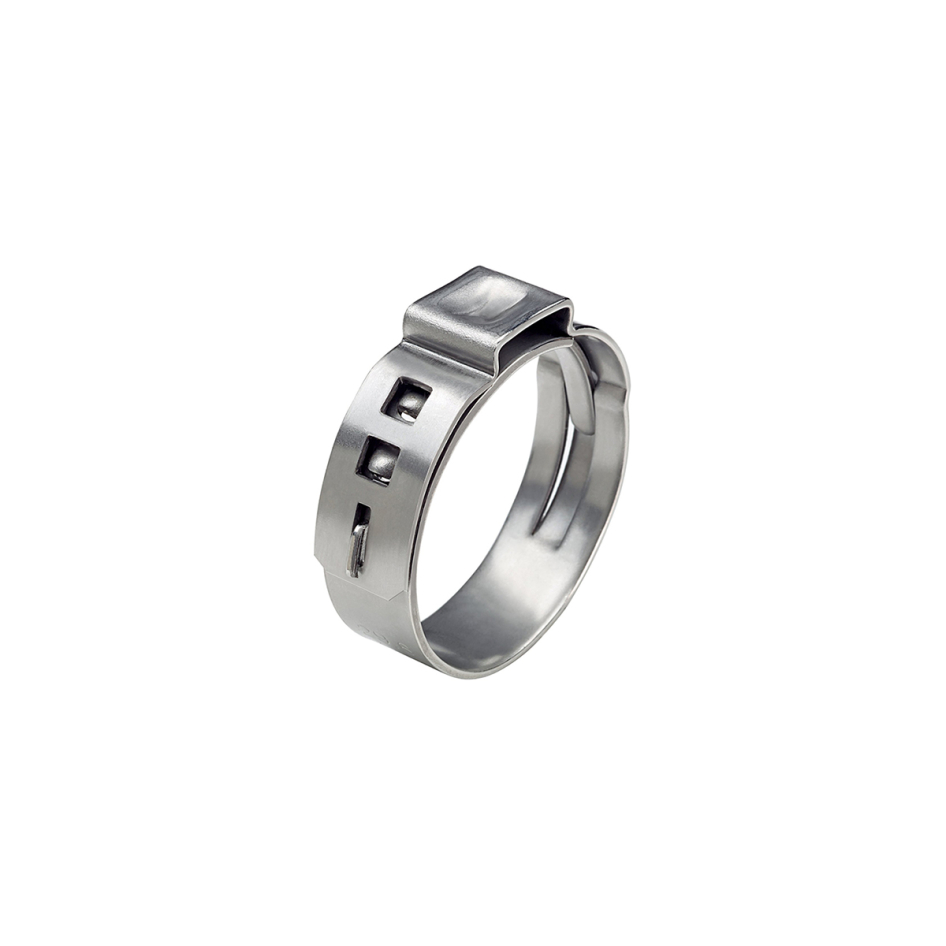

1 Bag (100 units) Oetiker Stepless O Clip Clamp 8.3 - 10mm - Pole Hose Size
£28.80
£48.00
Plus 20% VAT
In stock
Distributor Only
MOQ: 1 Bag (100 units) - not subject to any other Minimum Order Values
Lead time: Held in UK Stock
Shipping: These ship direct from our UK stock along with any other order components.
- Suitable for use with any combination of Gardiner 5mm barbed fittings & any of the Gardiner PVC or PU pole hoses
- This O clamp can be used to clamp down on hose with barb fitting inserted.
- To check suitability for use with other fittings/hoses - measure the OD of the hose with the barb inserted - if it is between 8.3 and 10.00mm then this fitting is suitable to be used
- To operate the clamp use a pair of O Clip Pincers to squeeze the side of the single ear together at the narrow point
-
- 167 Series Ear Clamp - Stainless Steel
- 360° StepLess - gives uniform compression and surface pressure
- Clamp Ear - compensates for component tolerances, barb size and hose material
- Dimple in Clamp Ear - Increases clamping force
- Burr-free strip edges to reduce material abrasion of hose
- Operating Instruction Sheet
- Video Guide
Size Guide:
- Oetiker 7.8 - 9.5mm
- For Gardiner All-Season & PU Pole Hose fitted with any 5mm barbed hose fittings - very tight fit - Oetiker 8.3 - 10mm
- For all Gardiner PVC & PU Pole Hoses fitted with any 5mm barbed hose fittings - Oetiker 9.0 - 10.5mm
- For Pole Hose fitted with 6mm Barb Fittings and Flexible Reinforced Pole Hose with 5 or 6mm fittings - Oetiker 10.3mm - 12.8mm -------
- For Microbore (6mm ID) - Oetiker 12.3mm - 14.8mm
- For Minibore (8mm ID) - 17 - 19.3mm
- For 1/2" Hose
