Aquatec WFP Delivery Pump 100PSI
Out of stock
- We have stopped selling these items
- They can still be purchased from other suppliers including Grippatank on this link

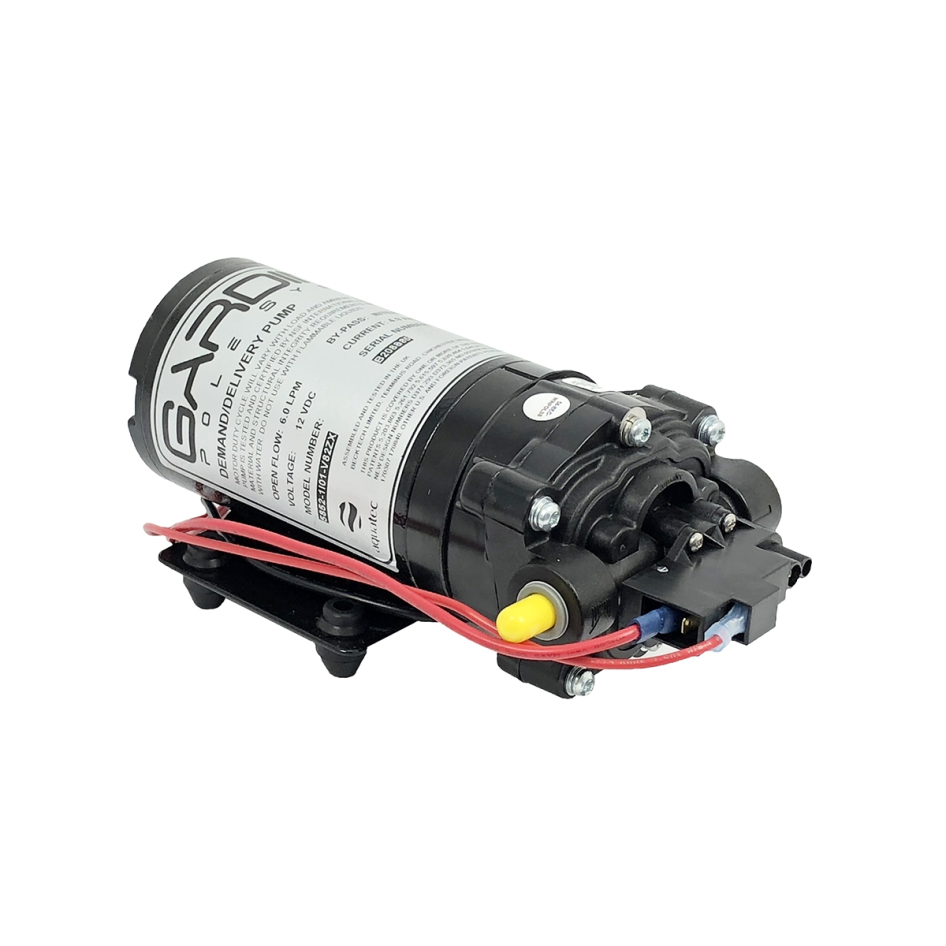

12 volt Water-Fed Pole delivery pump - High Quality
Designed to be used either on its own or with Liquid Logic controllers
- 100PSI Pressure Switch
- 7 Amp maximum current draw under standard loading
- Pump power supply needs a 7.5 or 10 Amp fuse fitted (exact size needed will depend on your circuit loading)
- 3/8" John Guest Ports on inlet and outlet - for quick release and leak free connections
- 6 LPM - Open Flow Rate
- 3 chamber pump with internal bypass
- Waterproof to IP55
- Maximum water temperature through pump 77°C
- 12 month warranty
- Please note that this pump must be used with an inline strainer for warranty to be valid
- We recommend using an Aquatec Strainer for this purpose
- When mounting these pumps mount them with the hose connections at the bottom - this helps prevent water from entering the motor housing in cases of leaking connections
- Click here for a Simple Wiring Guide
Aquatec 12v Water-Fed Pole Pump
- Please note that this pump must be used with an inline strainer for warranty to be valid
- We recommend using an Aquatec Strainer for this purpose
- Please note that due to the design of this pump it will need to be set at about 20% less flow rate on the controller compared to the equivalent Flojet pump
- Please note that all delivery pumps should be mounted lower than the top of the tank and if possible as close to the bottom level of the tank as possible
- When mounting these pumps mount them with the hose connections at the bottom - this helps prevent water from entering the motor housing in cases of leaking connections
Adjusting pressure switch:
To increase or decrease the sensitivity of the pressure switch the hex head grub-screw on the end of the pressure switch can be adjusted. To increase sensitivity (shut off more quickly) the screw can be slightly undone. To decrease sensitivity (shut off less quickly) the screw can be slightly tightened.
Commodity / Import Code - 84136080
