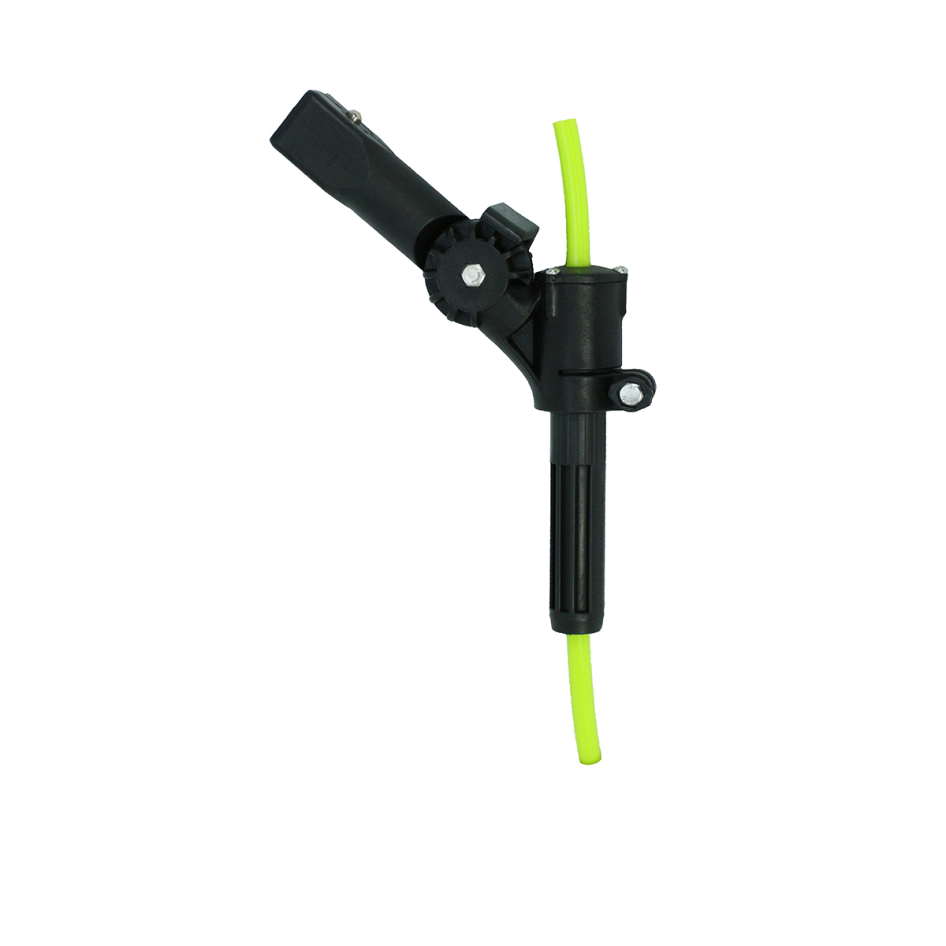

QuicK-LoQ Gooseneck Valve - Twist Action

• Gardiner Gooseneck Valve with Twist Action - Patented Inner Valve Technology
• "Control is not letting go" - Maintain full 'two-hand' control of the pole whilst controlling the water flow
• Simple and fast twist to actuate action - Twist clockwise on the handle to open and twist anti-clockwise on the handle to close
• Twist on at the top LH corner of the window and Twist off on the bottom RH corner
• Adjustable Tension Control to allow for different brush sizes and pole heights
• Maximum recommended pole height - 50ft
• Maximum recommended water temperature 70°C
• Can be operated with your hand for use on ground floor windows
• Improves speed of water control compared to a manual valve
• Quick-LoQ® brush connection
• No servicing needed - no O rings to grease or grub screws to adjust
• Suitable for pumped water supplies at up to 100psi
• Not suitable for use with caustic chemicals such as Sodium Hypochlorite
• Protect from frost - let water drain out of pole head if stored in vehicle overnight in freezing temperatures
• Weight - 130g (33g more than a standard Angle Adapter)
• Length from top of pole to tip of gooseneck 117mm - Reach with brush about 7"
• Also available as a cost option on our pole assemblies
• 6 month operational warranty on inner valve
• 12 month warranty on outer structural parts
• US Patents 5799987 - 5937885

Fitting Instructions

• Remove old gooseneck from the pole
• Take the connector fitted to the top of the pole-hose coming up the pole and push-fit on to the bottom PU hose on the base of the gooseneck valve assembly
• Slide the gooseneck valve into the top of the pole, push fully in and close the top clamp - ensure that the top pole clamp is firmly tightened so that it holds the gooseneck valve base with it being able to spin
• Fit a brush to the top of the gooseneck valve and connect the brush T connector to the top piece of tube from the valve
• Before first use ensure that all of the pole clamps are correctly tightened - it is important that the pole clamps firmly clamp the pole sections when using this valve
• adjust the gooseneck valve adjuster so that it operate with the desired force needed - TIP, when working at height this will need to be loosened off compared to ground and first floor work

How to Operate

• Extend the pole to the window, position the brush in the top left hand corner of the window and twist the pole to the right (clockwise from the pole base)
• When finished position the brush head on the bottom right hand corner of the window and twist the pole to the left (anti-clockwise from the pole base)
• Move to the next window and repeat

Troubleshooting

• Water is not flowing through the device - ensure that the device is turned on, check the device is not frozen, the unit could have a dirt blockage to clear remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
• Water is not shutting off using the device - ensure that the device is firmly clamped in the top section of the pole. The unit could have a dirt blockage to clear - remove the gooseneck from the pole turn around and connect the top hose to the pole hose and flush dirt out.
• The unit is too stiff to operate - loosen the bolt cap adjuster until desired tension is reached
• The unit is too loose and turns off too easily - tight the bolt cap adjuster until the desired tension is reached
